Jujube Paste Grinding Machine|Jujube Grinder

Jujube Paste Grinding Machine|Jujube Grinder

We focused on the food processing characteristics of the material in the machine's internal structure and it used to take a different design, grinding based on the characteristics of the material for special processing, so that the material processing fineness further increase, increased yields, can adjust the thickness of the grinding head design, more able to adapt to the customer's requirements, water circulation pipe diameter increased, increasing the water flow, greatly reducing the temperature of the material, so that the product tastes closer to nature.

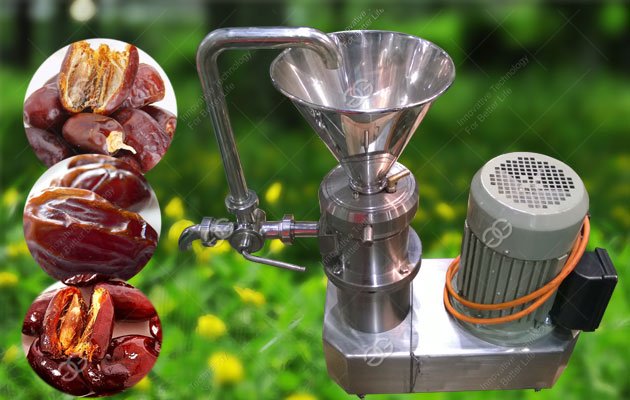

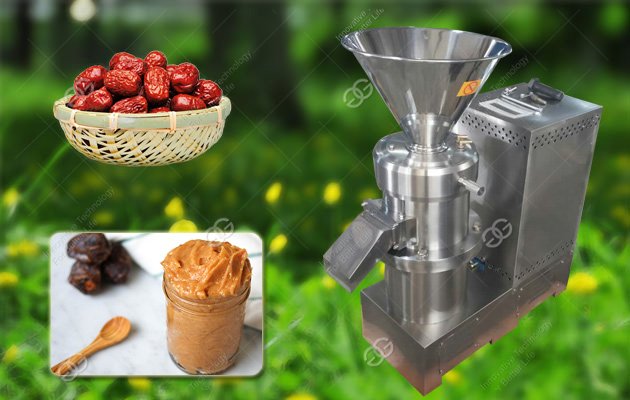

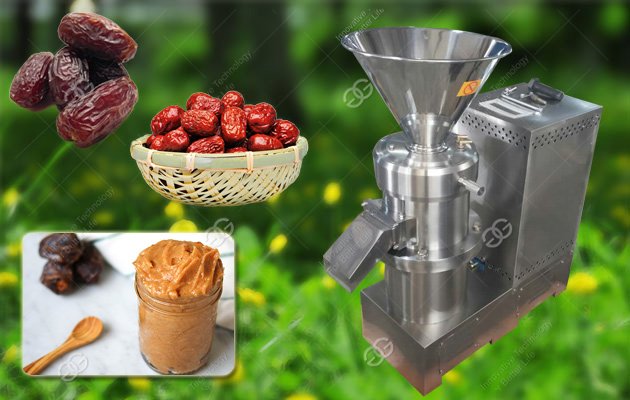

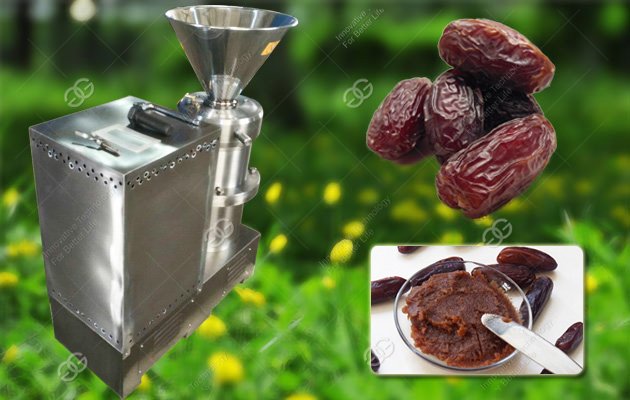

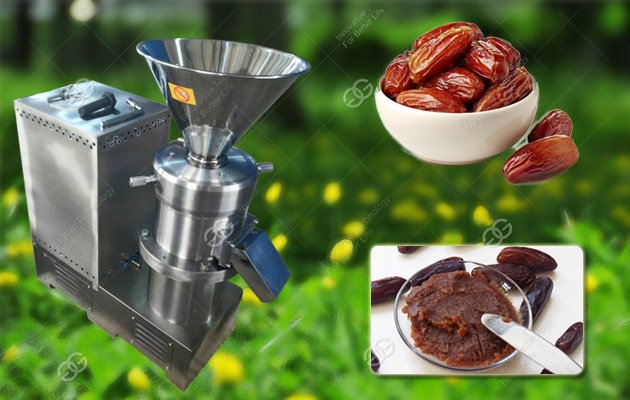

Ths jujube paste grinding machine is mainly used for milling the jujube into super-imperceptible paste. Could be used for the food,pharmacy, chemical, and other wet material, this technology is the first class in China. And this machine is made of stainless steel. We also have jujube grading machine.

Working Principle of Jujube Paste Grinder:
Jujube paste grinding machine is the basic working principle of cutting, grinding and high-speed mixing, crushing grinding on mill tooth profile incline relative motion, one of the high speed rotating, another still make through tooth profile incline between material by shear force and friction force, at the same time, in the high frequency vibration and the high-speed spiral complex force under the action of making materials such as effective grinding, emulsifying, crushing, scattered and homogeneous, and fine particle crushing effect is obtained.

Model	GGJMS-110	GGJMS-130	GGJMS-180	GGJMS-240	GGJMS-300
Capacity(Kg/H)	150-200	400-600	800-1000	1500-2000	3000-4000
Power(KW)	7.5KW,380V	11KW,380V	18.5KW,380V	45KW,380V	75KW,380V
Weight(Kg)	175	285	340	1300	1600
Dimension(mm)	700*430*1000	990*440*1100	830*490*1100	1320*500*1280	1440*630*1420
