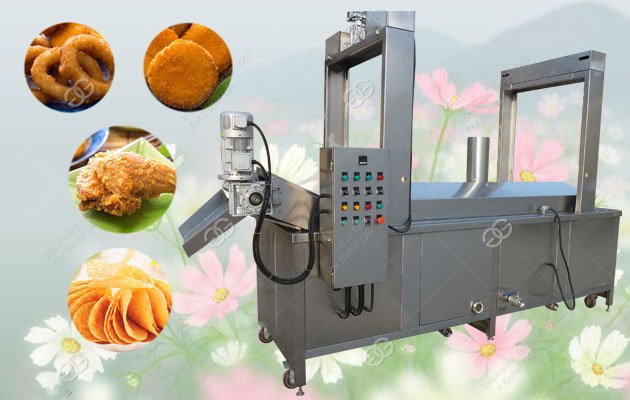

Do you know continuous snack deep frying machine
- Blog
- June-01,17
- Cara
- 176 Clicks
一: The pot part:
1. The pot body is made of 3mm stainless steel plate.
2. Shell body with 1.2mm stainless steel plate, the material is 304, cold forming.
3. After the pot welding welding test, to ensure that will not leak.
4. The main material of the pot is 304 stainless steel and other materials that conform to the food industry.
5. Between the pot and the shell is equipped with aluminum silicate insulation material, thickness of 60mm.
二: Mesh belt and mesh belt bracket part:
1. Net belt drive speed using frequency control.
2. Transmission motor with upper and lower layers were driven synchronous control, transmission motor power of 0.75KW.
3. B-type mesh with parameters: mesh with a total width of 800mm, wire diameter of 2.33mm, mesh center distance of 10mm, width 10mm, 9 knots. Material is 304.
4. Net belt bracket with 4mm stainless steel cold bending butt, made of 304 material.
5. Exhaust hood and mesh belt bracket can be raised independently, easy to clean.
Continuous fried line of high degree of automation, high efficiency, high yield, fried products of high quality. Is the ideal equipment for large and medium-sized fried food processing enterprises.
