Coconut Meat Juicing Machine|Cokernut Milk Extracting Machine

Coconut Meat Juicing Machine|Cokernut Milk Extracting Machine

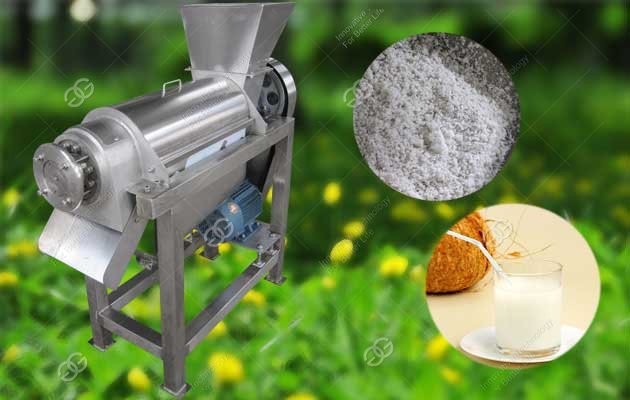

This coconut meat juicing machine is suitable for crushing after coconut,tomato, pineapple, apple, orange, blueberry, pepper, spinach and various kinds of vegetables, squeezing and dewatering.

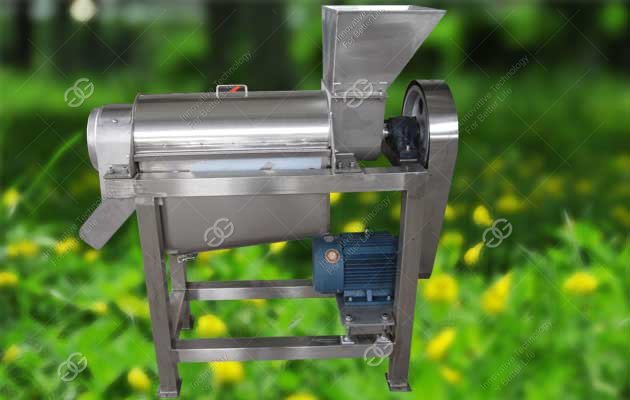

The device is mainly composed of a feed hopper, a front support, spiral, filter, gravy, after bearing, slag notch and other parts, the spindle is supported on the left spiral flow in the bearing seat, the right end is supported on the wheel bearing seat, motor through a belt pulley drive screw work.


Working principle: when grinding the coconut meat through the feed port into the machine, the spiral, spiral along the slag outlet direction of the bottom diameter gradually increased and the pitch decreased gradually when the material is spiral, narrow because the spiral cavity volume, press forming of materials,The direction of rotation of the spiral spindle is viewed from the direction of the feed hopper to the slag groove. The raw material into the hopper, compression screw propulsion, the press juice containing juice through the filter into the bottom of the annular gap is formed between the conical part and waste through the screw and regulating the discharge of the mobile pressure head along the axial adjustable pore size. Change the size of the voids, adjust the slag resistance, slag rate can be changed, but if the gap is too small, in strong extrusion, part of slag particles and juice together through the filtering net is out of juice, despite the increase, but the juice quality decreased, the void size should be considered user specific process requirements set.So as to achieve the purpose of automatic separation of juice and slag.
