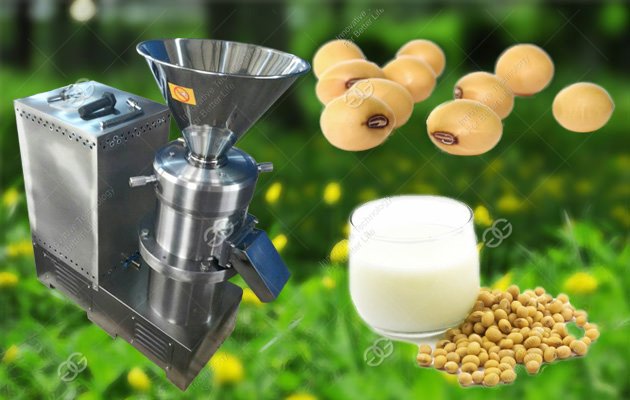

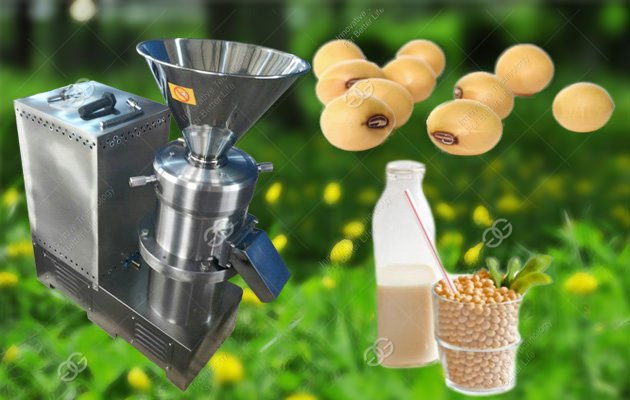

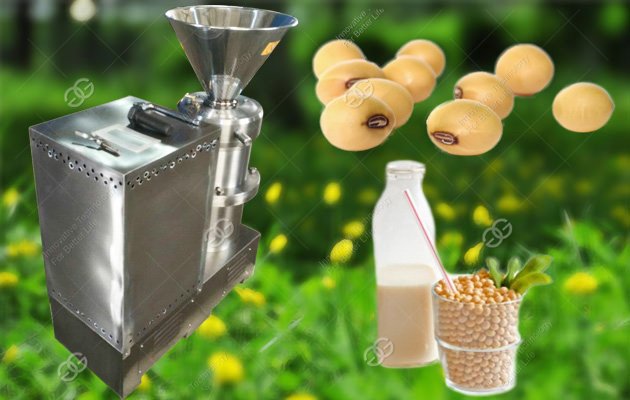

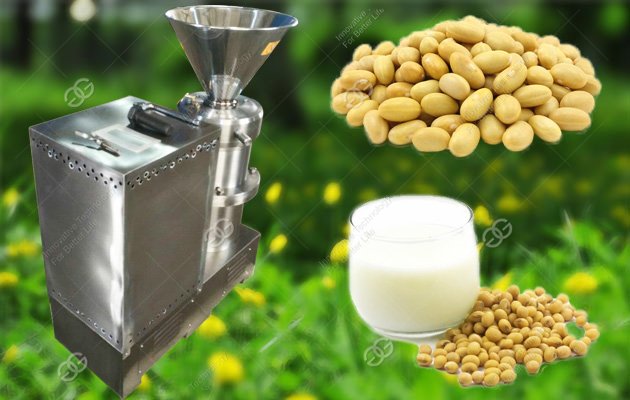

Yellow Bean Milk Grinding Machine Manufacturer
Material: Yellow Bean,Mung Bean,Beans
Capacity: 50-4000kg/h
Loading Port: Qingdao|Shanghai|Tianjin
Warranty time: 12 month
Supply ability: 100 Sets/month
Country Of Origin: China
Certification: CE
Description: This yellow bean milk grinding machine is mainly used for grinding beans butter,such as mung bean,soybean,brad bean and so on. Its shape with the same basic chemical used in a colloid mill.
Product Description
Yellow Bean Milk Grinding Machine Manufacturer
Introduction of Yellow Bean Milk Grinding Machine:
This yellow bean milk grinding machine is mainly used for grinding beans butter,such as mung bean,soybean,brad bean and so on. Its shape with the same basic chemical used in a colloid mill. If you want to remove the soybean red skin,we also have soybean peeling machine.
Matters Need Attention:
1. Mount the mill on a perfect leveling surface of concrete foundation and screw down into a permanent position by foundation bolts.(according to the operating site and conditions, it may also be put on even surface only without any fixing.)
2. Check every screw whether it is fastened.(Note: the motor central screw is left-handed.)
3. Turn the rotor slightly by accessory wrench before switching on of the drive motor to check if it touch or catch the stator. If so it is, strictly forbid to take into operation.
4. Inspect the power supply system. It must be 3-phase alternating current, and with the mill body grounding properly. The rotating direction of motor should correspond to the arrow marked on the mill base(clockwise)
5. Put through cooling water on to the inlet nozzle 2, but if the speed does not exceed 4000rpm, cooling is unnecessary in general.
6. Start the motor at a touch and go in order to check if any abnormal noise or vibration exists. If so, stop immediately and repair, then test again.
7. Clean the mill after processing timely, Cleaning must be carried out in the running condition, and firstly, turn the gap-regulating ring 6 counterclockwise to an angle not less than 90C.
Features of Yellow Bean Milk Grinder Machine:
1. Main spare part use the best quality stainless steel, corrosion resistance and non-toxicity.
2. The stator and rotor can select different materials, and match grinding and sharing structures and tooth type, the client can select according the usage.
3. The working gaps can be adjusted, and match the dial scale, easy to control, can make sure the quality of the products.
4. The main seat, adjust ring match the Stopper and locking device, which can make sure the stability of the working gap between the stator and rotor.
5. The design of the machine has the usual feeding hopper, and pipe outlet which can make the material to be recycled in the machine, can satisfy the requirements of users.
6. The user can select the usual motor or Explosion-proof motor.
Working Video about Soybean Milk Grinding Machine:
Working Video about Soybean Milk Grinding Machine:
| Model | GGJMS-130 | GGJMS-180 | GGJMS-240 | GGJMS-300 |
| Capacity(Kg/H) | 400-600 | 800-1000 | 1500-2000 | 3000-4000 |
| Power(KW) | 11KW,380V | 18.5KW,380V | 45KW,380V | 75KW,380V |
| Weight(Kg) | 285 | 340 | 1300 | 1600 |
| Dimension(mm) | 990*440*1100 | 830*490*1100 | 1320*500*1280 | 1440*630*1420 |
