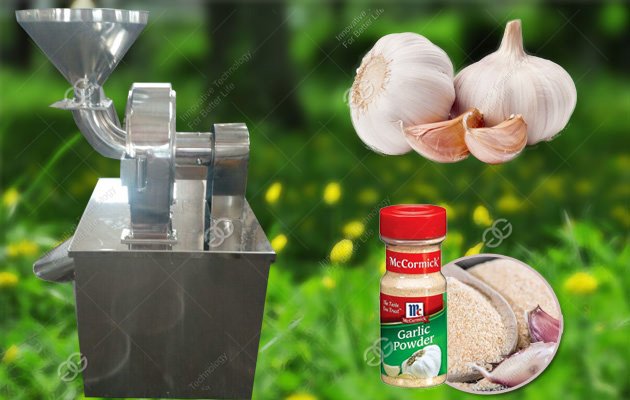

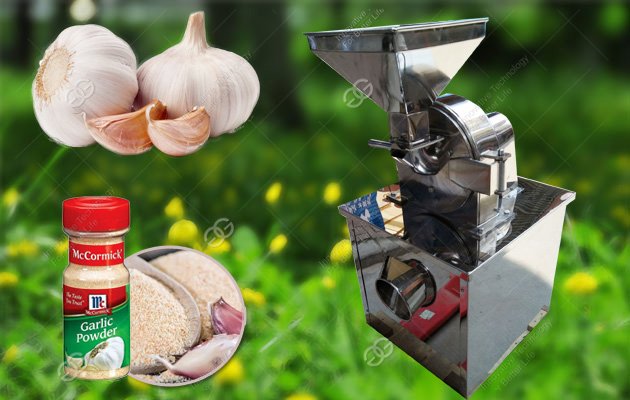

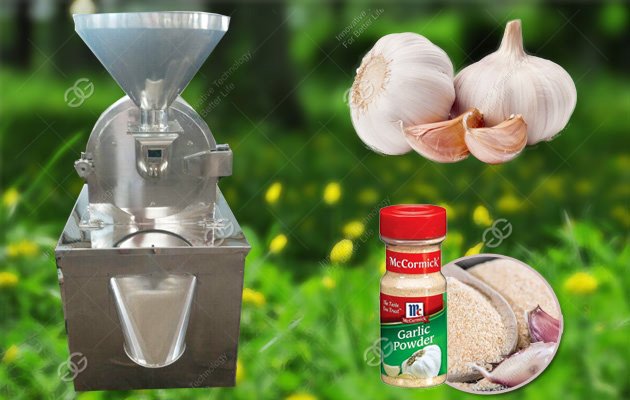

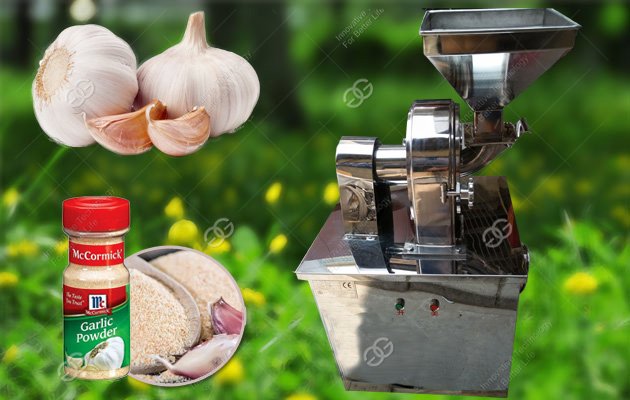

Dry Garlic Powder Milling Machine With 304 Stainless Steel
Material: Garlic,Ginger,Sugar
Capacity: 30-1000kg/h
Loading Port: Qingdao Port and Shanghai Port
Warranty time: 12 month
Supply ability: 100 Sets/month
Country Of Origin: China
Certification: CE
Description: Stainless steel garlic powder milling machine has a simple structure, solid, smooth operation, smash the material fast, uniform, good effect. The whole machine is made of 304 stainless steel.
Product Description
Dry Garlic Powder Milling Machine With 304 Stainless Steel
Introduction of Water Cooling Device of Garlic Grinder:
Universal grinder, stainless steel dust remover, according to the user's special requirements and the special physical and chemical properties of crushed materials can be installed water-cooled devices. If the melting point of the material is lower, ignition is low, heat easily weak, sticky, resulting in reduced crushing effect or can not be crushed, or even caused by combustion, explosion, it is necessary to crush equipment on the installation of water-cooled cooling device.
The common water-cooled device is to install a sealed water clamp on the front and back wall of the crushing chamber respectively, so that the flow of tap water or well flow into the back wall, and then flow into the top wall water folder, and then from the front wall water folder back into the back wall, from the back wall of the outlet outflow. The purpose of the water-cooled device is to reduce the temperature of the crushing chamber!

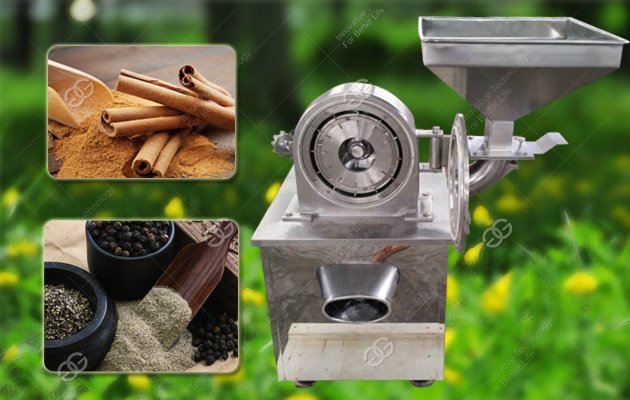

The Advantages of Multifunctional Garlic Powder Grinding Machine:
1, the inner wall processing fine, smooth formation, overcome the old model of the existence of rough, accumulated powder and other shortcomings.
2, sand mill in accordance with national standards and GMP requirements for the production of pharmaceuticals, food, chemicals and so on.
3, water-cooled device, conveyor screw can be equipped according to customer needs.
Video:
Video:
Related Machine:
Mashed Garlic Grinding Machine
| Model | Capacity(Kg/h) | Voltage(V) | Speed of main shaft | Size(mm) |
| GG200 | 30-120 | 220/380 | 4200 | 480*520*1040 |
| GG300 | 60-200 | 380 | 4200 | 750*600*1260 |
| GG400 | 80-300 | 380 | 4200 | 780*700*1350 |
| GG500 | 100-500 | 380 | 4200 | 800*900*1550 |
| GG600 | 500-1000 | 380 | 4200 | 1200*1000*2000 |
