Almond Shelling Peeling Production Line Manufacturer
Material: Almond
Capacity: 300-1000kg/h
Loading Port: Qingdao|Shanghai|Tianjin
Warranty time: 12 month
Supply ability: 100 Sets/month
Country Of Origin: China
Certification: CE
Description: This almond shelling and peeling line is suitable for large volume production. It has the characteristics of cleanness, high completeness rate and easy cleaning.
Product Description
Almond Shelling Peeling Production Line Manufacturer

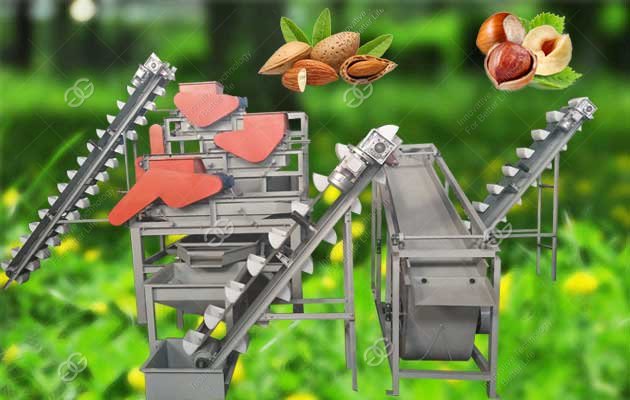

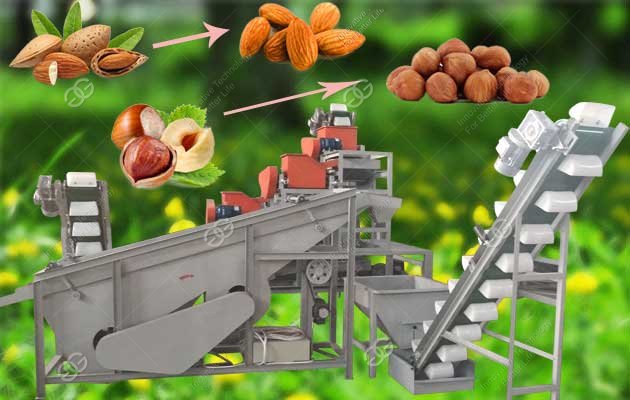

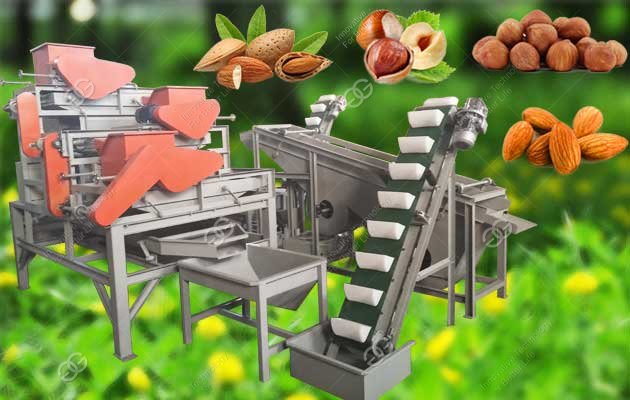

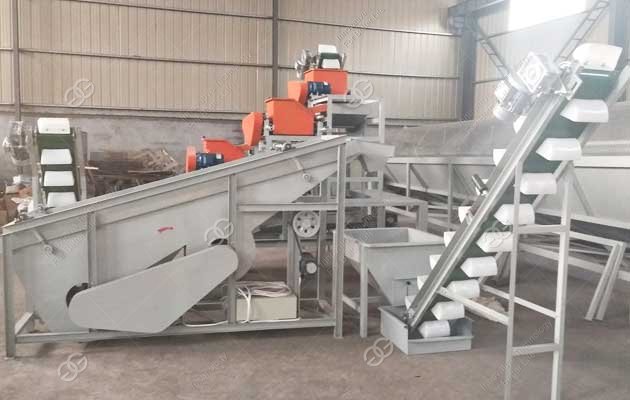

Introduction of Almond Shelling Peeling Line:
This almond shelling and peeling line is suitable for large volume production. It has the characteristics of cleanness, high completeness rate and easy cleaning. It is the ideal choice for large shelling processing enterprises to improve their efficiency and reduce costs.
Work Process of Almond Shelling Line:
1, the raw material through the elevator into the screening machine (flat screen or drum sieve selection) separate the size of three or more levels, a separate hopper into the three shelling shelling.
2, shelling machine shelling clearance corresponding to adjust the size of the corresponding material is good, to achieve the effect of shelling clean, shell and benevolence into the two sets of shell separation machine. If the output is small, you can just a shell kernel separator.
3, shell kernel separator, the shell and kernel separated, a feed mouth of nuts, the other feed mouth shell. Then enter the storage screen miscellaneous machine.
4, storage screening machine crushing broken shell impurities, quantitative feed into the soaking machine.
5, soaking machine automatic temperature system soaked nuts, automatic access to materials.
6, wet peeling machine soaked good nuts skin.
7, after peeling the nuts by air-dried with no artificial net pick nut net, into the elevator.
8, nuts by the elevator into the drying machine cooling one low-temperature drying and cooling, finished nuts is room temperature, the material directly packaged.
What's more,this almond shelling peeling line can be based on the size of the output, the size of raw materials for customers to design custom. If you need a small production shellig machine,we also have single stale almond shelling machine.
| Hoist |
Dimension: 600*600*6500mm Power: 0.75kw/ 380v-50hz |
| Grading Screening Machine |
Three level Dimension: 3500*1100*2000 mm Material: Carbon steel Power: 1.5kw/380v/50hz |
| Dividing Hopper | Dimension: 2000*700*1300 mm |

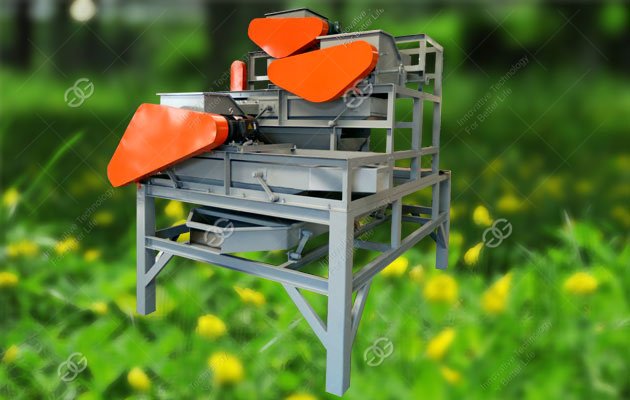

| Shelling Machine |
Dimension: 3500*900*1300 mm Power: 3kw/380v/50hz |
| Shell Separator Machine |
Dimension: 3200*900*1600 mm Power: 3kw/380v/50hz |
| Picking Belt |
Dimension: 6000*900*800 mm Power: 1.1kw/380v/50hz |
