Commercial Chocolate Manufacturing Machine Cost
Material:
Capacity:
Loading Port:
Warranty time: 12 month
Supply ability: 100 Sets/month
Country Of Origin: China
Certification: CE
Description:
Product Description
Commercial Chocolate Manufacturing Machine Cost
The whole set of chocolate manufacturing machine is our company's latest machine, which can realize the entire chocolate production process. The chocolate manufacturing machine can greatly reduce your equipment investment costs.
Introduction of Chocolate Manufacturing Machine:

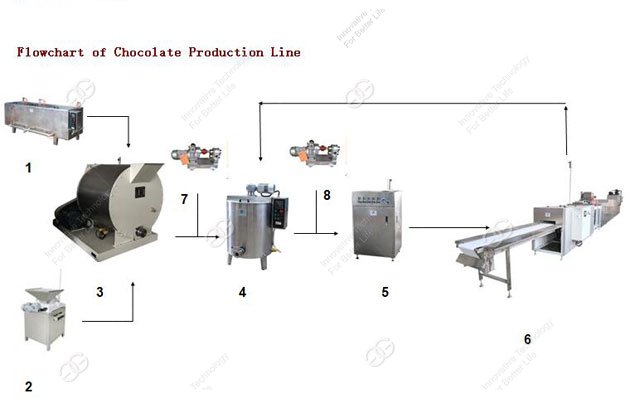

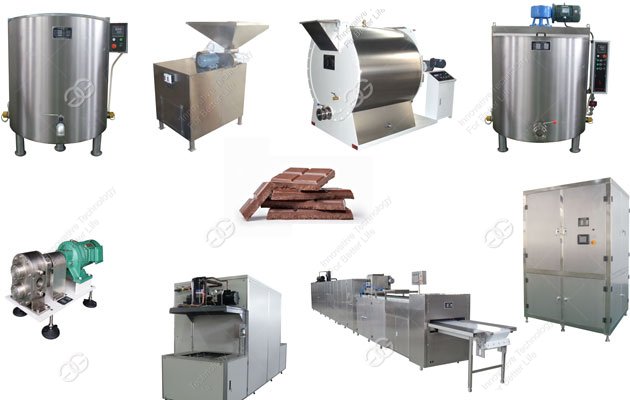

The whole plant consists of chocolate melting machine, sugar grinding machine, chocolate refiner and conche, chocolate storage tank, chocolate temperature machine, chocolate moulding machine, chocolate cooling tunnel, chocolate delivery pump, pipeline and mould.

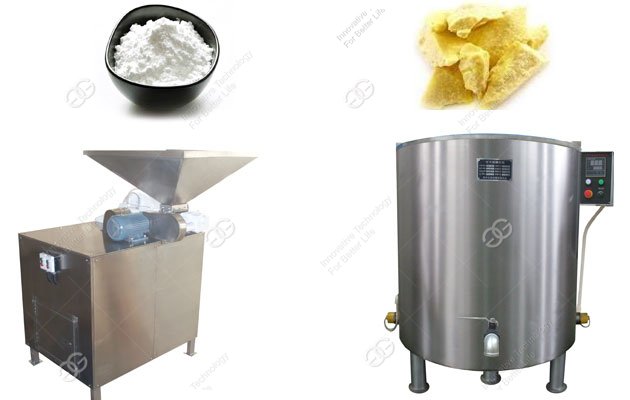

1.Chocolate Melting Machine
The machine dissolves the solid cocoa butter into liquid oil. The machine can use electric heating, equipped with automatic temperature control system, is an important machine in the production of chocolate candy. At the same time, the machine can be equipped with a slurry pump to directly transfer the oil to the grinding machine, greatly saving time.
2.Sugar Grinding Machine
The machine is mainly used for grinding sugar into a certain degree of fine powder, so as to improve the precision grinding efficiency. The machine consists of the feed part, the extrusion part and the dust collecting part. The structure is very simple and all parts that come into contact with the material are made of stainless steel.The raw material to be broken in different fineness can be realized by replacing the screen mesh
3.Chocolate Refiner And Conche
Chocolate refiner and conche is the main machine in the production of chocolate, mainly used for grinding and mixing chocolate paste and sugar. The rear cover of the machine is provided with a ventilator. The outer cover is made of 304 stainless steel. The rest is made of carbon steel and coating. We have different models of this machine, which can be used in chocolate factories of different sizes.

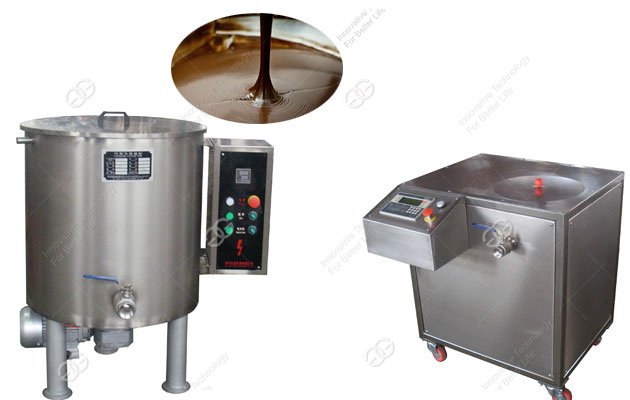

4.Chocolate Storage Tank
The chocolate storage tank is an essential equipment in chocolate production. It is mainly used for grinding chocolate syrup after heat preservation, meeting the technical requirements of chocolate production and adapting to continuous production requirements. In addition to functions such as cooling, temperature rise, and heat preservation, the machine can also continuously stir the chocolate pulp, and has the functions of degassing, air desulfurization, etc., thereby reducing the water content in the chocolate paste.
5.Chocolate Temperature Machine
The chocolate temperature machine is an indispensable device in the chocolate production line. It can be controlled automatically and strictly according to the temperature required in the production process of chocolate, so that the chocolate produces a stable crystal shape, so as to guarantee the quality of chocolate, which can make chocolate smell more dense and taste more abundant.

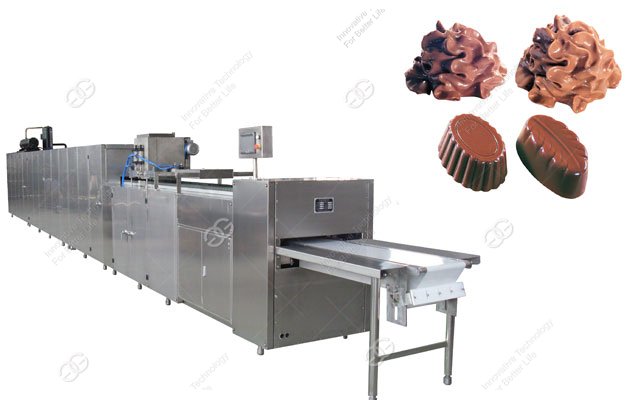

6.Chocolate Moulding Machine
We have many types of chocolate moulding machine including single head chocolate moulding machine, two heads chocolate moulding machine, 3+2 chocolate moulding machine and so on. This machine is mainly used to make chocolate molding, and there are also a variety of molds to choose from, which can produce pure chocolate and other chocolates of various sizes, different fillings, different colors and various flavors.

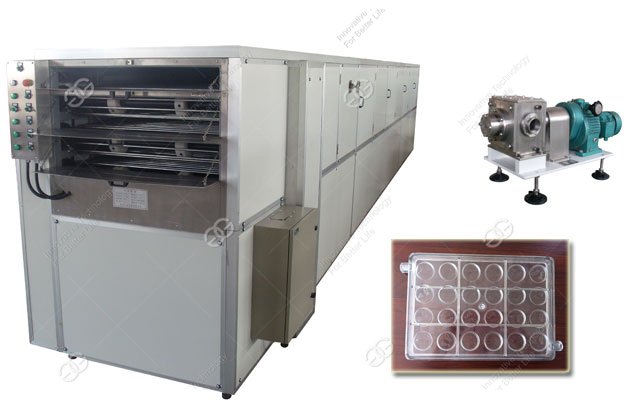

7.Chocolate Cooling Tunnel
The chocolate cooling tunnel is mainly used for cooling forming after chocolate pouring. We have two types of cooling tunnel including hangling basket type chocolate tunnel and horizontal moving type chocolate tunnel. After the chocolate is delivered to the cooling tunnel, the machine will cool the chocolate with special cooling air. The cooling effect is stable and the whole process is clean.
8.Chocolate Delivery Pump
The chocolate delivery pump is used to pump and transport chocolate sauce and can meet the technical requirements of continuous chocolate production. And the continuous heat preservation can be realized in the transportation process.
Advantages of Chocolate Manufacturing Machine:
1.The chocolate manufacturing machine adopts automatic control system, which can accurately heat and circulate cooling.
2.The shapes of mould can be customized according to guest actual production needs.
3.The whole equipment has stable performance, convenient operation and can greatly reduce cost.
4.The chocolate manufacturing machine is made of high quality stainless steel and other materials. The chocolate produced is harmless to the human body and fully meets international standards.
Our service for Chocolate Manufacturing Machine:
1.We can provide customers with professional advice to help them choose machines.
2.We provide lifetime maintenance and thoughtful technical support
3.We can send technicians abroad if necessary.
4.You can always find and talk to us if there are any problems before or after delivery.
If you have demand for the chocolate manufacturing machine, you can contact us, we promise that we will sell it to you with low cost !
Technical Data :
Technical Data :
| Chocolate Melting Machine | |
| Model | TRYG240 |
| Material | Stainless Steel |
| Capacity | 240L |
| Pump power | 0.2KW |
| Electric heating power | 6KW |
| Net weight | 180kg |
| Dimension | 1600×800×900mm |
| Sugar Grinding Machine | |
| Model | TFTJ250 |
| Capacity | 250kg/h |
| Total Power | 9KW |
| Dimension | 1100×750×1800mm |
| Net weight | 420kg |
| Feeding Granularity Size | 0.5-2mm |
| Average Grain | 150-180µm |
| Rotation Rate | 3800r/min |
| Chocolate Conche Machine | |
| Model | TJMJ500 |
| Capacity | 500L |
| Main motor power | 11KW |
| Regulating motor power | 1.5KW |
| Electric heating power | 6KW |
| Dimension | 2000×1860×1250mm |
| Net weight | 2800kg |
| Fine Grinding Granularity | 20-25µm |
| Chocolate Storage Tank | |
| Model | TBWG500 |
| Material | Stainless Steel |
| Capacity | 500L |
| Main motor power | 1.5KW |
| Electric heating power | 4KW |
| Dimension | Φ1000×1380mm |
| Net weight | 600kg |
| Chocolate Moulding Machine | |
| Model | TQJJ150 |
| Capacity | 100-200kg/h |
| Power | 7.47KW |
| Quantity of mould | 275×175×30mm |
| Net weight | 500kg |
| Dimension | 4300×520×1500mm |
| Chocolate Cooling Tunnel | |
| Model | TLSD400 |
| Material | Stainless Steel |
| Temperature of cooling tunnel | 5-10℃ |
| Main motor | 1.5KW |
| Net weight | 2500kg |
| Dimension | 5400×1230×1930mm |
| Cooling compressor | 5HP |
| Chocolate Pump | |
| Model | SJB-32 |
| Material | Stainless Steel |
| Flow Rate | 32L/min |
| Power | 1.5KW |
| Dimension | 780×390×350mm |
| Net weight | 120kg |
| Chocolate Pump（speed adjustable） | |
| Model | SJB-25 |
| Material | Stainless Steel |
| Flow Rate | 25L/min |
| Power | 0.75KW |
| Dimension | 700×300×350mm |
| Net weight | 105kg |
