Cocoa Powder Grinding Production Line|Cocoa Powder Making Machine
Material: Cocoa Bean
Capacity: Can be customized
Loading Port: Qingdao Poet And Shanghai Port
Warranty time: 12 month
Supply ability: 100 Sets/month
Country Of Origin: China
Certification: CE
Description:
Product Description
Cocoa Powder Grinding Production Line|Cocoa Powder Making Machine
Cocoa powder is made from cocoa cake. Baked cocoa beans will first be ground into cocoa butter. Then, the oil is squeezed out of the cocoa mass with a liquid hydraulic press and then the cocoa cake is removed. Cocoa cake will be placed in a powdered machine to obtain the final cocoa powder.

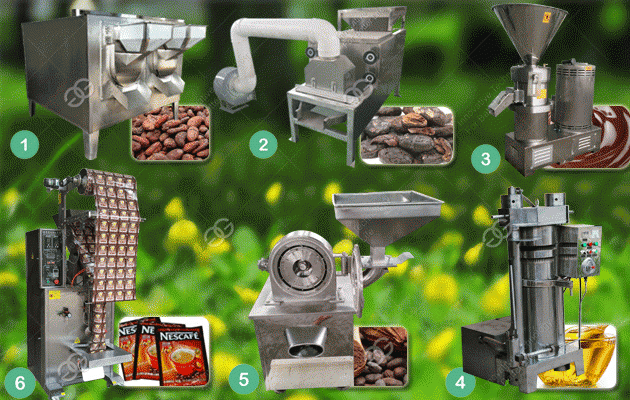

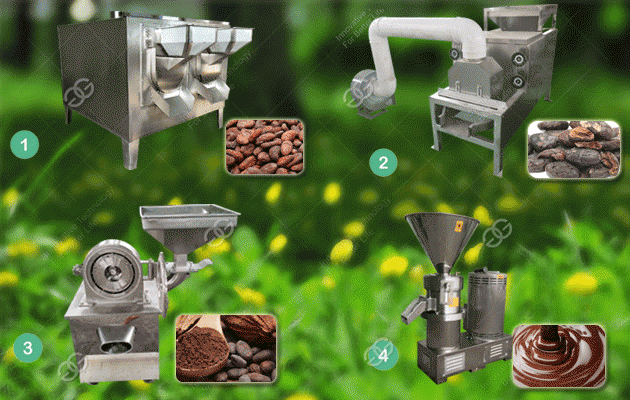

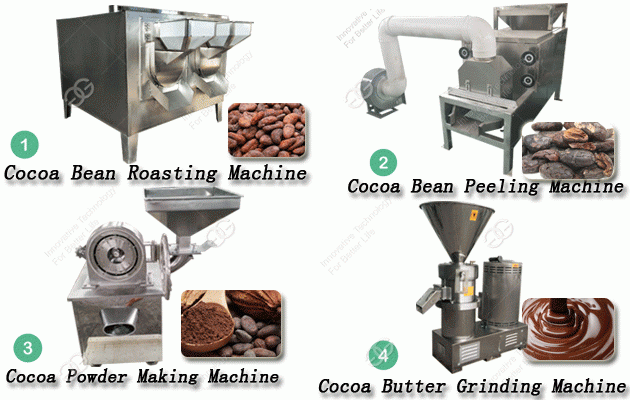

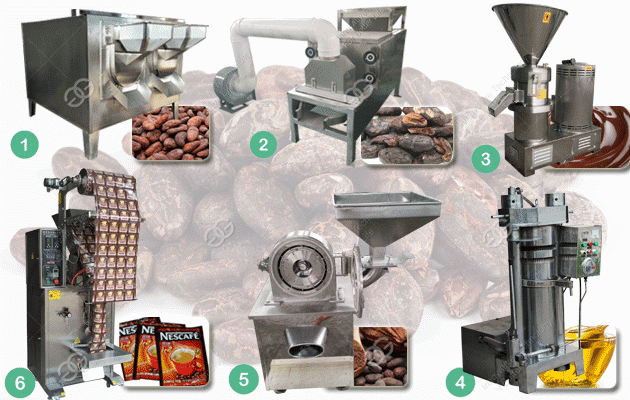

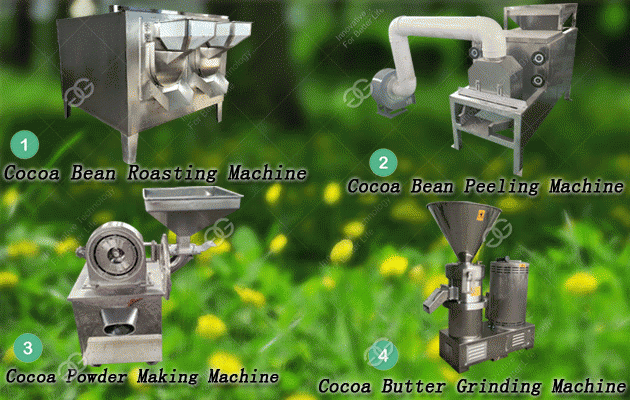

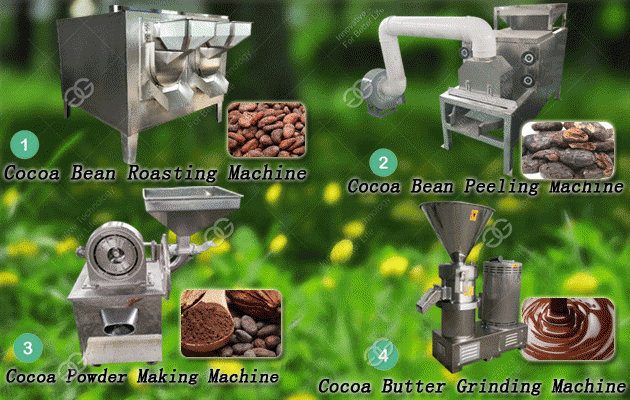

Main Equipment of Cocoa Powder Production Line:
•Cocoa Bean Roasting Machine: The machine is mainly used for cocoa beans,peanuts,almonds,sesame seeds,cashew nuts,sunflower seeds, nuts, drying and baking hot products, using the principle of rotary drum, heat conduction, thermal radiation. Can be used in a variety of ways as heat source, pure flavor of baked products. Has the advantages of energy saving, safety, sanitation and convenience, easy to operation.
•Cocoa Bean Peeling Machine: This machine is a professional equipment to peel cocoa beans, the machine design is reasonable, simple operation, safe and reliable, high production efficiency, energy saving and environmental protection, is the ideal equipment for cocoa coffee peeling.
•Cocoa Butter Grinding Machine: This cocoa beans butter grinding machine is mainly used for grinding cocoa beans,can also be used to grind peanuts,almonds,cashew,jujube,strawberry and so on. We have different models colloid mill. Customers can choose according to the amount of production they need.
•Cocoa Oil Press Machine: Hydraulic oil presss machine is the main processing oil crop object, such as sesame, walnut kernel, peanut kernel, pine seeds, almond and other high oil crops. The machine has easy operation in mechanical oil, spiral, replacement of parts, is the alternative refined balm manual operation of advanced equipments, because each time can extract (2-7 kg/time), short time (8 to 12 minutes/times).
•Cocoa Powder Grinding Machine: The machine USES the relative motion between the movable gear disc and the fixed tooth disc, which can be crushed by the combined action of the crush, friction and material impact of the crushed objects. The machine structure is simple, solid, smooth operation and good crushing effect. The pulverized objects can be directly produced by the machine grinding cavity and the particle size is obtained by changing the different aperture sieve mesh.
•Cocoa Powder packaging machine: According to customers's requirement, GELGOOG offer both powder bag packaging machine, sealing machine (packing into 3kg, 5kg, 10kg, etc) and also powder sachet packaging machine (packing into small sachets like 100grams-1kg, etc)
| Model | Specification |
| 1.Roasting machine |
Gas volume:2-3kg/h Power:1.1KW Dimension:2900*1250*1750mm Capacity:100KG/H |
| 2. Bean peeling machine |
Model:GGPT-300 Power:1.5kw+0.75kw, 380V,50HZ Capacity:300-500kg/h Dimension:1800*750*1300mm |
| 3.Grinding machine |
Output size(mesh):100-200 Capacity(kg/h)：200 Power(KW)：7.5 Weight(kg):175 Dimension(mm):700*430*980 |
| 4. Oil Press Machine |
Pressure:60Mpa Piston stroke:550mm Feeding Diameter:230mm Capacity(Per time):7-8kg Heating power:1kw Hydraylic Motor power:1.5kw,380V Nominal pressure:2200KN Capacity:50-60KG/H Dimension;900*750*1400mm Weight:880kg |
| 5.Cake crushing machine |
Capacity:200kg/h Inter diameter:300*210mm Power:5.5kw Weight:340kg Dimension:1000*700*1300mm |
| 6.Powder Making Machine |
Capacity(kg/h):100-300kg/h Revolution of spindle:3400r/min Size of fed material (mm):12 Grinding Size:60-120 mesh Crusher motor:11kw Cleaner motor:0.75kw Dimension (mm):600*700*1450 Weight (kg):320 |
