Cocoa Powder Grinding Processing Line|Cacao Mill Grinding Machine Factory Price
Material: Cocoa beans
Capacity: 200kg/h
Loading Port: Qingdao port and Shanghai port
Warranty time: 12 month
Supply ability: 100 Sets/month
Country Of Origin: China
Certification: CE
Description: This cocoa powder grinding processing line is the processing of cocoa beans, the final grinding into a cocoa powder.
Product Description
Cocoa Powder Grinding Processing Line|Cacao Mill Grinding Machine Factory Price

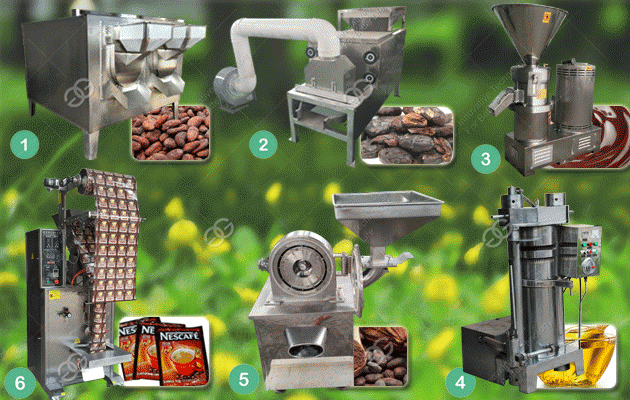

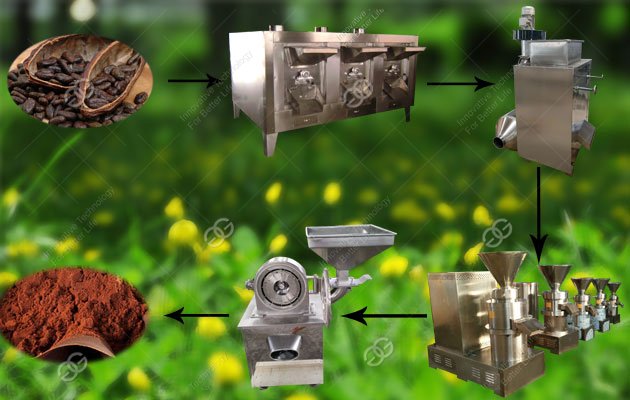

This cocoa powder grinding processing line is the processing of cocoa beans, the final grinding into a cocoa powder,this production line consist of cocoa beans roasting machine,cocoa beans peeling machine,cocoa beans butter grinding machine colloid mil,cocoa powder grinding machine and other machine.
Cocoa Powder Grinder Machine Line working principle:
1. Working principle of the high quality stainless steel, 304 national standard motor, mainly used in chemical materials, Chinese herbal medicine containing the roots, branches and block class materials, all kinds of food, grain oil content is not high, and other hard and brittle materials.
2.The food grinder using the disk activity and fixed means of relatively
high-speed operation, make the shattered by the gear disk impact, friction and collision among the materials themselves and crushed. Material can be directly from the eduction in the grinding cavity, the discharging mouth, the general material after crushed through cotton bags to collect, shredded material collected in the bag, air from a bag of tiny hole to come out, will not be fine powder, thereby no waste, no pollution effect. By changing sieve in different mesh size.
Related Machine:Cocoa Butter Grinding Machine
| Name | Parameter | |
|
1. |

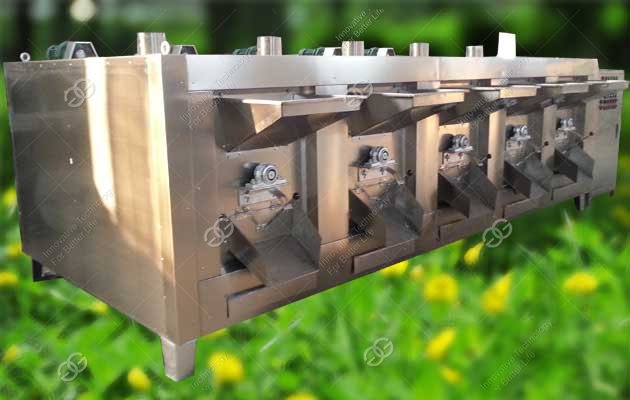

Roasting machine |
Model:GG-1 Capacity(kg/h):80-120 Heating power(kw):18 Dimension:3000*1200*1700mm |
|
2. |

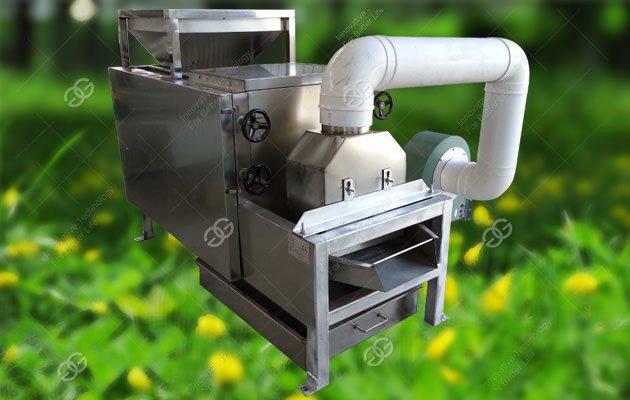

Peeling machine |
Model:GG Capacity(kg/h):400 Power(kw):2.2 Dimension:1300*800*130mm |
|
3. |

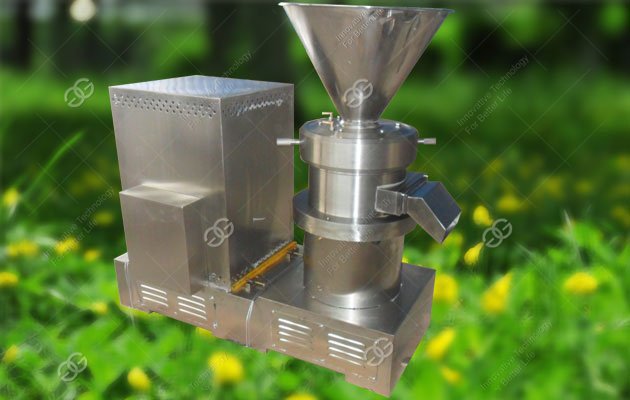

Cocoa butter machine |
Model:GG-80 Capacity:0.07-0.1t/h Power(kw):4 Dimension:640*410*900mm |
|
4 |

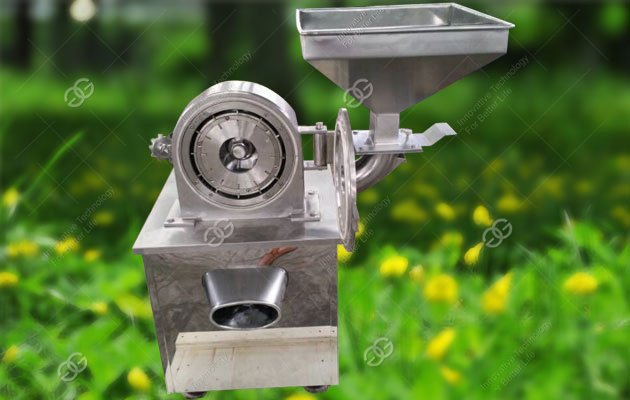

Grinding machine |
Model:GG-20B-C Capacity:60-150kg/h Revolution of spindle:4500r/min Grinding size:60-120 mesh Crusher motor:4kw Dimension (mm):550*600*1250 |
