Automatic Cocoa Production Line|Cocoa Powder Milling Line
Material: Cocoa Bean
Capacity: 100-1000kg/h
Loading Port: Qingdao Port and Shanghai Port
Warranty time: 12 month
Supply ability: 100 Sets/month
Country Of Origin: China
Certification: CE
Description: Cocoa powder is made from cocoa beans through a series of processes. Cocoa beans are baked to grind the baked coco beans into cocoa butter.
Product Description
Automatic Cocoa Production Line|Cocoa Powder Milling Line
Cocoa powder is made from cocoa beans through a series of processes. Cocoa beans are baked to grind the baked coco beans into cocoa butter. Then, the oil is extruded from the cocoa mass with a hydraulic press, and then the cocoa mass is removed. The cocoa cake into the powder machine grinding, the final cocoa powder.
Cocoa is made from cocoa beans through a series of processes. Cocoa beans are baked to grind the baked coco beans into cocoa butter. Then, the oil is extruded from the cocoa mass with a hydraulic press, and then the cocoa mass is removed. The cocoa cake into the powder machine grinding, the final cocoa powder.

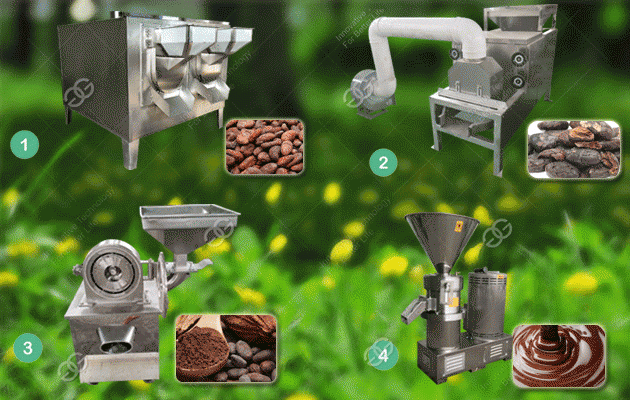

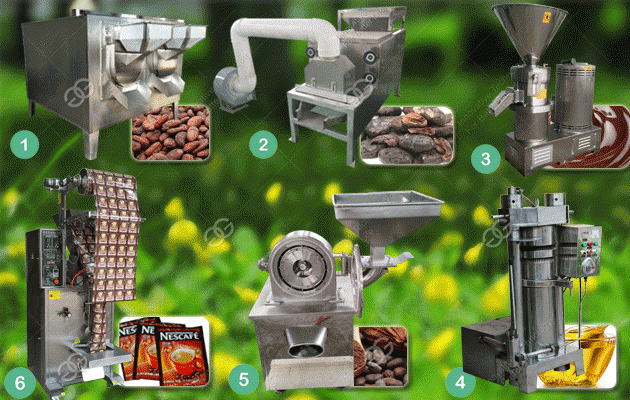

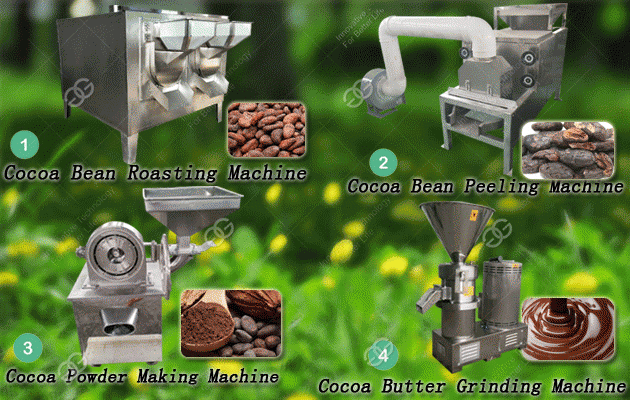

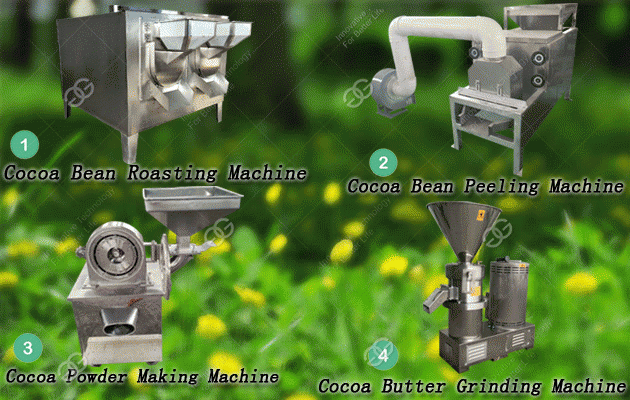

Main Equipment of Cocoa Powder Milling Production Line:
♦Cocoa bean baking machine: This machine is mainly used for baking nuts, such as peanuts, almonds, sesame seeds, cocoa beans, heating can choose electric heating, coal heating, gas heating and other means, directly through the heat radiation The cocoa beans are heated and the roasted cocoa beans are uniformly heated during the rotation of the roasting sieve to obtain the desired baking effect.
♦Cocoa bean baking machine: This machine is mainly used for baking nuts, such as peanuts, almonds, sesame seeds, cocoa beans, heating can choose electric heating, coal heating, gas heating and other means, directly through the heat radiation The cocoa beans are heated and the roasted cocoa beans are uniformly heated during the rotation of the roasting sieve to obtain the desired baking effect.
♦Cocoa peeling machine: This is a professional cocoa bean peeling equipment, the aircraft has a reasonable design, simple operation, safe, reliable, efficient, energy saving, environmental protection and other characteristics, is an ideal cocoa peeling equipment.
♦Cocoa butter grinder: This product is wet ultra-micro grinding, grinding, emulsifying, mixing, dispersing, homogenizing, mixing and efficient functions. Can also be used to grind other nuts sauce, such as peanuts, almonds, hazelnuts, sesame seeds and so on.
♦Cocoa bean oil press: hydraulic press machine is sesame, walnut, peanut, pine nuts, almonds and other high-oil crops, the main processing of oil crops. The machine is easy to operate on mechanical oil, screw and parts replacement. It is a manual operation of the refined balm of advanced equipment. Each time can extract 2-7 kg / time, short time (8-12 minutes / time).
♦Cocoa liquid block crusher: This machine is especially suitable for drying, fresh bovine, pig bone, sheep bone, donkey bone and other animal bone bones, broken range 5-80mm. Widely used in all kinds of sausage, ham, lunch meat, meatballs, frozen food, saltiness, bone marrow extract, bone, bone glue, chondroitin, bone soup, bone peptide extract, biological products, pet food and frozen meat Other hard-crushed material.
♦Cocoa powder milling machine: This machine uses a movable gear and fixed gear between the relative movement between the crush, crushing and crushing material by the impact of the impact of crushing. The machine structure is simple, solid, smooth operation, good crushing effect. Crushed objects can be directly produced by the machine grinding chamber, by changing the size of the sieve to obtain different pore size.
Video:
Video:
| Model | Specification |
| 1.Roasting machine |
Gas volume:2-3kg/h Power:1.1KW Dimension:2900*1250*1750mm Capacity:100KG/H |
| 2. Bean peeling machine |
Model:GGPT-300 Power:1.5kw+0.75kw, 380V,50HZ Capacity:300-500kg/h Dimension:1800*750*1300mm |
| 3.Grinding machine |
Output size(mesh):100-200 Capacity(kg/h)：200 Power(KW)：7.5 Weight(kg):175 Dimension(mm):700*430*980 |
| 4. Oil Press Machine |
Pressure:60Mpa Piston stroke:550mm Feeding Diameter:230mm Capacity(Per time):7-8kg Heating power:1kw Hydraylic Motor power:1.5kw,380V Nominal pressure:2200KN Capacity:50-60KG/H Dimension;900*750*1400mm Weight:880kg |
| 5.Cake crushing machine |
Capacity:200kg/h Inter diameter:300*210mm Power:5.5kw Weight:340kg Dimension:1000*700*1300mm |
| 6.Powder Making Machine |
Capacity(kg/h):100-300kg/h Revolution of spindle:3400r/min Size of fed material (mm):12 Grinding Size:60-120 mesh Crusher motor:11kw Cleaner motor:0.75kw Dimension (mm):600*700*1450 Weight (kg):320 |
