Commercial Hazelnut Shelling Roasting Production Line
Material: Hazelnut,Almond
Capacity: 100-1000kg/h
Loading Port: Qingdao Port and Shanghai Port
Warranty time: 12 month
Supply ability: 100 Sets/month
Country Of Origin: China
Certification: CE
Description:
Product Description

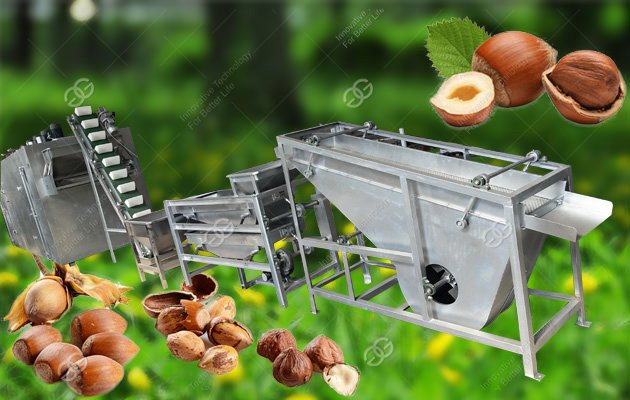

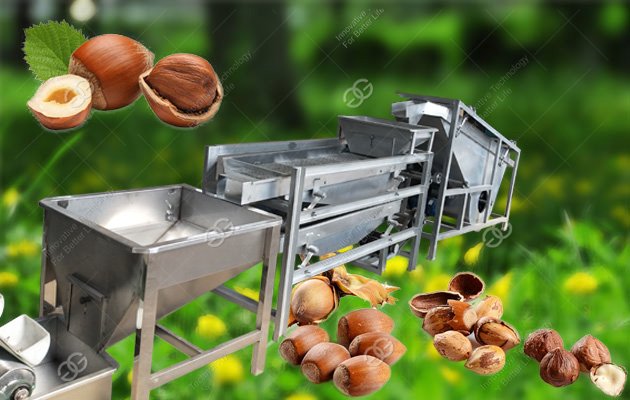

Commercial Hazelnut Shelling Roasting Production Line
Introduction of Hazelnut Shelling Roasting Production Line:
This hazelnut shelling roasting production line is suitable for large output flow operation, high shelling rate, high complete rate and easy to clean. It is an ideal choice for large scale hazelnut shell removal and processing enterprises to improve their efficiency and reduce the cost ideal.
Hazelnut Shelling Production Line Equipment:
1. Hazelnut Grading Machine: The raw material hazelnut has been entered into the sieve selection machine (flat screen or roller screen selection) by the lifting machine, and graded into three or more levels hazelnuts, through hopper are separated into three separate hulling machines.
2. Hazelnut Shelling Machine: The hulling machine (the clearance gap of the sheller can be adjusted according to the size of the raw material, so as to achieve the complete removal of the shell), the shell and the kernel are entered into two shell kernel separators. (For small amount large small hazelnut can be confluence to a separator).

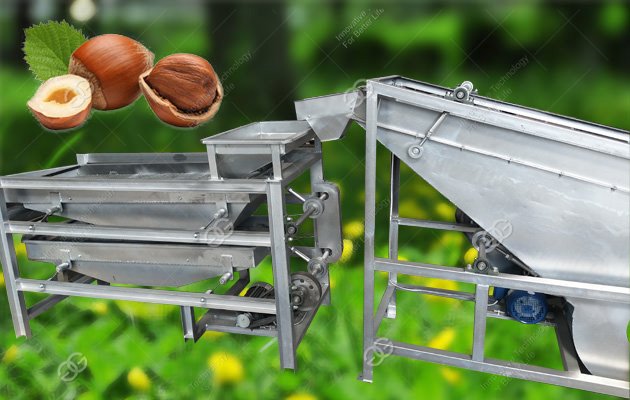

3. Hazelnut Shell And Kernel Separating Machine: The shell and kernel separator, separating the shell and the kernel, one of outlet is out of the kernel and the other is out of the shell. Through conveying belt put into the storage sifter.
4. Hazelnut Roasting Machine: It has reasonable heat distribution design to make the airflow uniformity,thus ensure the uniform roasting resulting obtainable;
Video:
According to the production size, the size of raw materials, our factory can customize and design this hazelnut processing plant for you.
After years of efforts and innovation, with strong research and development strength and strict management system, advanced production technology, our Machinery offer for overwhelming majority of customers with high quality and low price products all over the country, some are exported to overseas, excellent quality and perfect after-sales service by the broad masses of users trust and praise.
Video:
Related Machine:
Hazelnut Slice Cutting Machine
| Hoist |
Dimension: 600*600*6500mm Power: 0.75kw/ 380v-50hz |
| Grading Screening Machine |
Three level Dimension: 3500*1100*2000 mm Material: Carbon steel Power: 1.5kw/380v/50hz |
| Dividing Hopper | Dimension: 2000*700*1300 mm |
| Shelling Machine |
Dimension: 3500*900*1300 mm Power: 3kw/380v/50hz |
| Shell Separator Machine |
Dimension: 3200*900*1600 mm Power: 3kw/380v/50hz |
| Picking Belt |
Dimension: 6000*900*800 mm Power: 1.1kw/380v/50hz |
| Roasting Machine |
Dimension: 7500*1500*2200mm Heating Power:70kw |
