Peanut Paste Making Line 500 Kg Per Hour
Material: Peanut
Capacity: 500kg/h
Loading Port: Qingdao Port and Shanghai Port
Warranty time: 12 month
Supply ability: 100 Sets/month
Country Of Origin: China
Certification: CE
Description: This peanut paste making production line is mainly used for making peanut butter,the line includes peanut sheller,peanut roaster,peanut peeler,peanut butter grinder and so on.
Product Description
Peanut Paste Making Line 500 Kg Per Hour
Machine material description:
Peanut roasting machine is a standard type of material, the contact part with the material and outsourcing plate is stainless steel. All conveyor belts, contact parts with stainless steel or food grade rubber, exposed frame stainless steel. Other equipment and materials contact part of stainless steel, the other part of carbon steel type.

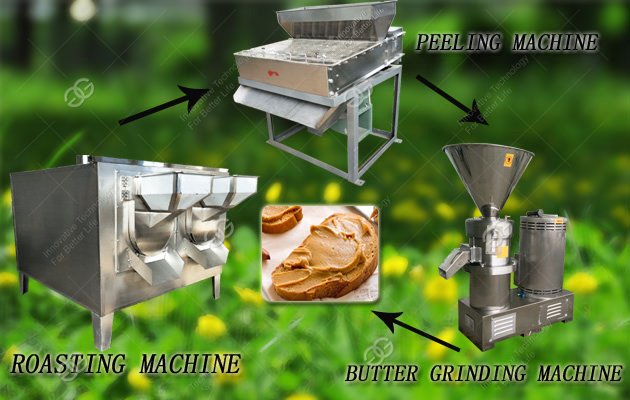

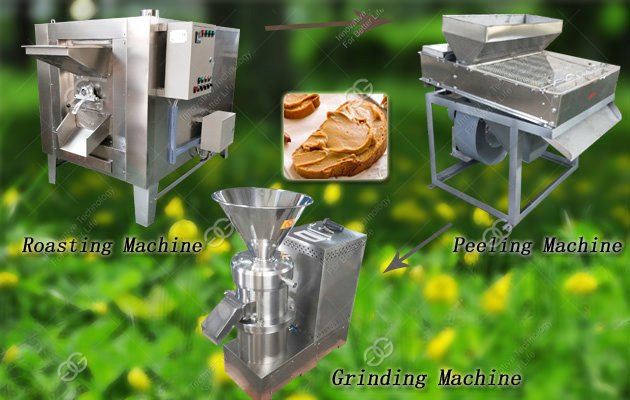

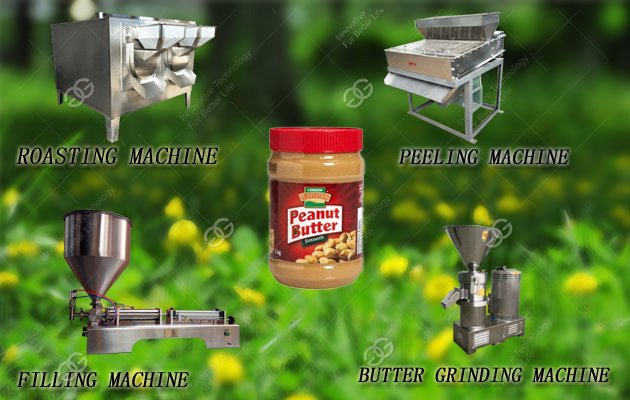

Introduction of Peanut Paste Making Production Line:
♦Peanut Roasting Machine: Batch roaster’s working temperature is 200-210 ºC, 20-30 minutes. Use batch roaster will bake some delicious smells.
♦Roasted Peanut Peeling Machine: Put the roasted peanuts into peeler to take off the red skin, the double rollers will frication the red skin, the simple cyclone system will suck the red skins, most of them will be put in half-piece, then fall to the selecting conveyor, the over-roasted peanut kernel is picked up by manual or mechanical.
♦Peanut Butter Grinding Machine: Using grinder to make the second grinding, the fineness of grinding is controlled below 7μm, temperature of grinding is controlled below 68C.
♦Peanut Butter Mixing Tank: Make the peanut butter more homogeneous.
♦Cooling Machine: The peanut butter after ground should be cooled immediately. The temperature should go down 45C.
♦Vacuum Degasser: Take out the air from peanut butter.
♦Peanut Butter Filling Machine: Packing the peanut butter into bottle, filling quantity can be adjusted.

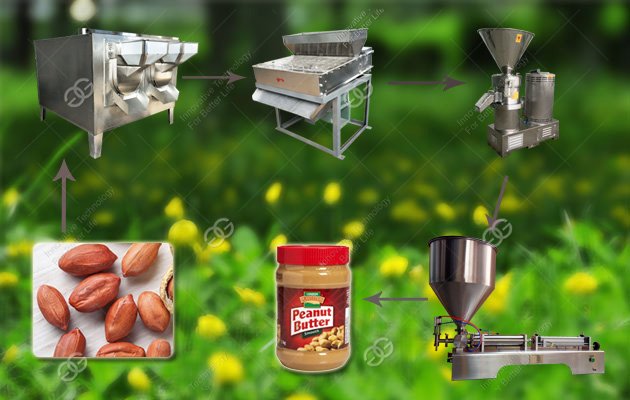

Peanut Butter Making Production Line Working Principle:

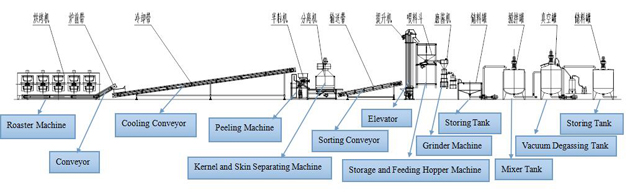

Main Equipment of Peanut Butter Production Line:
This peanut paste making production line includes the peanut roaster machine, peanut dry peeling machine, automatic feeding machine, peanut butter grinding machine, vacuum degassing machine, cooling machine and so on.The character is high automation,good reliability,full enclosed production,No pollution,the finished peanut butter has the export standard. The detailed technology and capacity can be customize according to the customer requirements.
| No. | Item |
Power (KW) |
Dimension(mm) | Qty |
| 1 | Roaster Machine | 118 | 4700*2900*1650 | 1 |
| 2 | Conveyor | 0.75 | 5000*500*900 | 1 |
| 3 | Cooling Conveyor | 8.1 | 10000*1200*1600 | 1 |
| 4 | Peeling Machine | 1.5 | 1000*1000*1400 | 1 |
| 5 | Kernel and Skin Separating Machine | 3 | 1800*1000*1500 | 1 |
| 6 | Sorting Conveyor | 0.75 | 6000*700*1000 | 1 |
| 7 | Elevator | 0.75 | 1000*500*3400 | 1 |
| 8 | Storage and Feeding Hopper Machine | 0.55 | 1100*1100*2400 | 1 |
| 9 | Grinder Machine | 11x4 | 900*350*900 | 4 |
| 10 | Flat Table | 2300*2000*600 | 1 | |
| 11 | Storing Tank | 500L | 1 | |
| 12 | Paste Pump | 1.5 | 1000*300*350 | 1 |
| 13 | Mixer Tank | 4 | 800L | 1 |
| 14 | Vacuum Degassing Tank | 6.2 | 800L | 1 |
| 15 | Paste Pump | 2.2 | 1100*350*350 | 1 |
| 16 | Storing Tank | 3 | 800L | 1 |
| 17 | Electric Control Cabinet | 2 |
