Pumpkin Seed|Semen Cucurbitae Baking|Roasting Machine Chain Plate
Material: Pumpkin seed
Capacity: 100-500kg/h
Loading Port: Qingdao port and Shanghai port
Warranty time: 12 month
Supply ability: 100 Sets/month
Country Of Origin: China
Certification: CE
Description: This pumpkin seed|semen cucurbitae baking machine chain plate is mainly used for roasting pumpkin seed. Heating mode of gas and electric heating.
Product Description

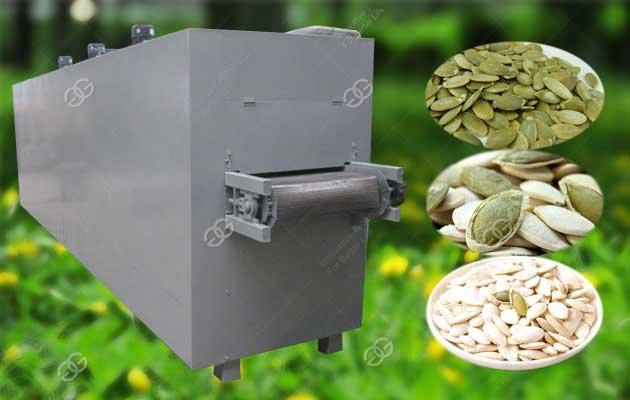

Pumpkin Seed|Semen Cucurbitae Baking|Roasting Machine Chain Plate
This pumpkin seed|semen cucurbitae baking machine chain plate is mainly used for roasting pumpkin seed. Heating mode of gas and electric heating.
This machine can be designed according to the customer's site the equipment is a strong hot air circulation, high heat utilization, good baking. The heating element adopts multi branch electric heating tube arranged in the furnace with intranet on both sides of the mesh belt workpiece evenly, direct heating for dry, fast heating, good effect of heat. The wind stirring machine is installed in the top of the room body, hot air to the mixing, to further improve the heating uniformity of workpiece conveying. The system is mainly composed of a sprocket, mesh belt tensioner and a driving motor, directly fixed on the skeleton.
| Model | GG-300 | GG-500 |
| Transmission power | 10kw | 10kw |
| Heating power | 70kw | 115kw |
| Material thickness | 50-60mm | 50-60mm |
| Capacity | 300-350kg/h | 500-600kg/h |
| Dimension | 7500*1500*2600mm | 7500*1800*2600mm |
