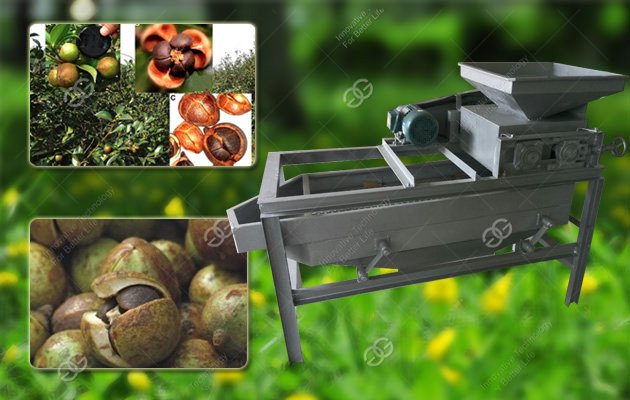

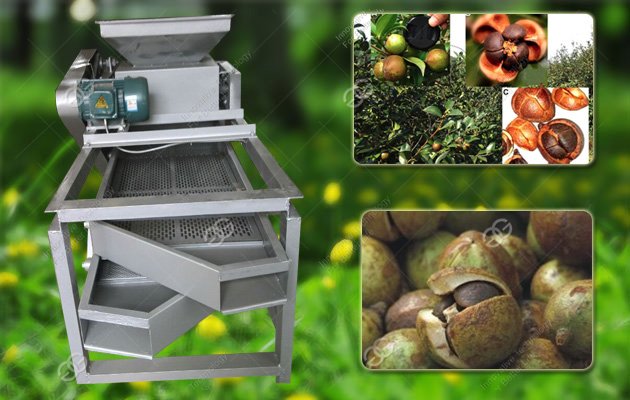

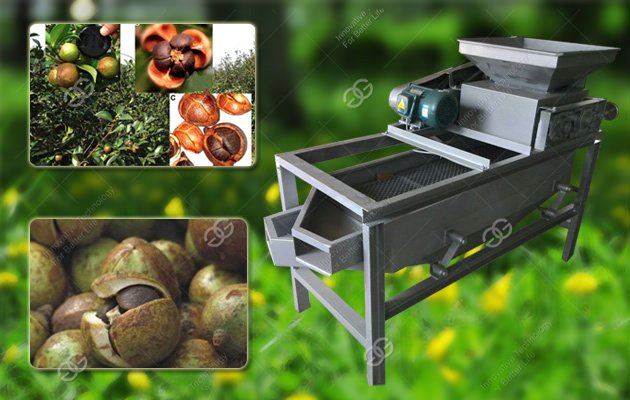

Oil Tea Shelling Machine|Oil Tea Fruit Sheller Machine

Tea seed shelling machine is a special equipment for shelling and whole shelling of seeds, which has the advantages of simple structure, convenient operation, low power consumption and low noise. The machine is mainly used for shelling oil tea fruit,almond,hazelnut,peach kernel and so on. Can be used with the nut screening machine.

Advantages of Oil Tea Shelling Machine:

1. Sheller has the advantages of compact structure, easy operation, reliable performance, high stripping efficiency, good sorting effect and low loss.

2. The machine has a hopper, roller lever style, plate-type gravure printing presses, fans, gravity sorting sieve, modular air delivery and other parts.

Camellia Seed Shelling Machine Works:

The seeds are fed by the wind feeder (or manual feeder) into the hopper. Feeding into the front roller, using the curvature of the rotary gate between the grain and the pressing friction plate to shelling the camellia fruit, the sheeted kernel and the shell are simultaneously descended by the front arc door, and most of the seed shell Blow out the outside of the machine, but a portion of the unhulled grain falls off with the shell. Sorted out on the sieve, directly selected by the sorted kernels. Camellia sinensis without shelling through sorting, into the lifting device, into the shelling machine for second peel. Eventually shelling of all camellia fruit can be achieved.



Oil Tea Shelling Machine Note:

1. Before use, you should first check whether fasteners tightened, rotating parts are flexible, whether each bearing lubricating oil, the machine should be placed on a stable surface.

2. Before use, check the power switch must be in the off position.

Model	GGXt-300
Capacity	400kg/h
Power	2.2kw(380v)
Dimension	1.9*0.78*1.2m
Weight	280kg
