Home > Products > Shelling Machine >
Palm Nut Shelling Processing Line|Palm Sheller Line
Material: Palm Nut,Almond,Peanut
Capacity: 100-1000kg/h
Loading Port: Qingdao Port and Shanghai Port
Warranty time: 12 month
Supply ability: 100 Sets/month
Country Of Origin: China
Certification: CE

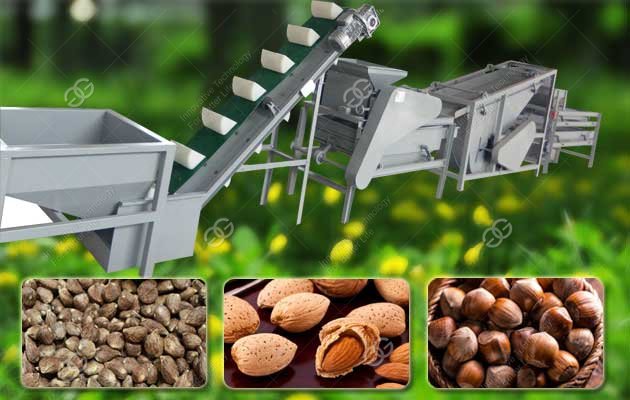

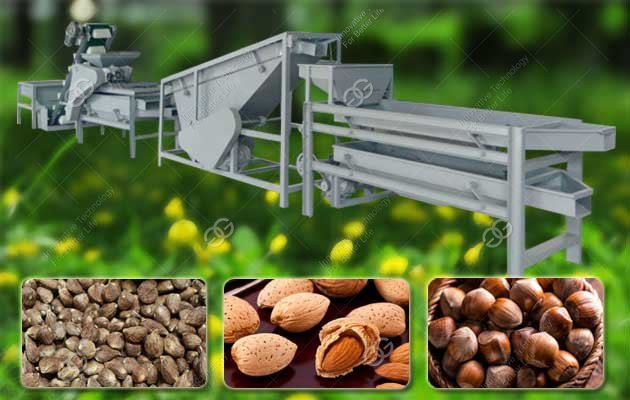

Description: The complete palm nut shelling production line is composed of hoister, palm grading machine, hopper, three-level palm shelling machine, kernel and shell separator etc. These machines can be designed to customize non-standard mechanical equipment for users.
Product Description
Palm Nut Shelling Processing Line|Palm Sheller Line
Palm Nut Shelling Production Line Equipment:
1. Palm Nut Sorter: The raw palm has been passed through the elevator into the screening machine (flat sieve or roll sieve), graded into three or more levels of palm, divided into three separate shelling machines through the hopper.
2. Palm Shelling Machine: Shelling machine (the gap of the shelling machine can be adjusted according to the size of the raw material to achieve the complete removal of the shell), and the shell and the core respectively enter the two shell core separators. (For a small number of large palms, they can be combined into a separator.)
3. Palm Shell And Kernel Separating Machine: Shell and core separators, separate shells and cores, one of which exits the core and the other leaves the shell. Place the storage screen through the conveyor belt.
The complete palm nut shelling production line is composed of hoister, palm grading machine, hopper, three-level palm shelling machine, kernel and shell separator etc. These machines can be designed to customize non-standard mechanical equipment for users. We adhere to the quality strives for the survival, development by reputation, to scientific and technological innovation, make the enterprise development together with the users, build credibility, create the future, given to guide the friends from all walks of life to visit our factory cooperation.
After years of hard work and innovation, with strong R&D strength and strict management system and advanced production technology, our machinery provides high quality and low price products for customers all over the country. Some of our products are exported to overseas, with excellent quality and perfect after-sales service. Service has won the trust and praise of the majority of users.
| Hoist |
Dimension: 600*600*6500mm Power: 0.75kw/ 380v-50hz |
| Grading Screening Machine |
Three level Dimension: 3500*1100*2000 mm Material: Carbon steel Power: 1.5kw/380v/50hz |
| Dividing Hopper | Dimension: 2000*700*1300 mm |
| Shelling Machine |
Dimension: 3500*900*1300 mm Power: 3kw/380v/50hz |
| Shell Separator Machine |
Dimension: 3200*900*1600 mm Power: 3kw/380v/50hz |
